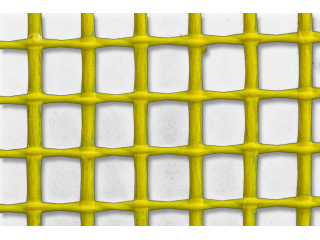

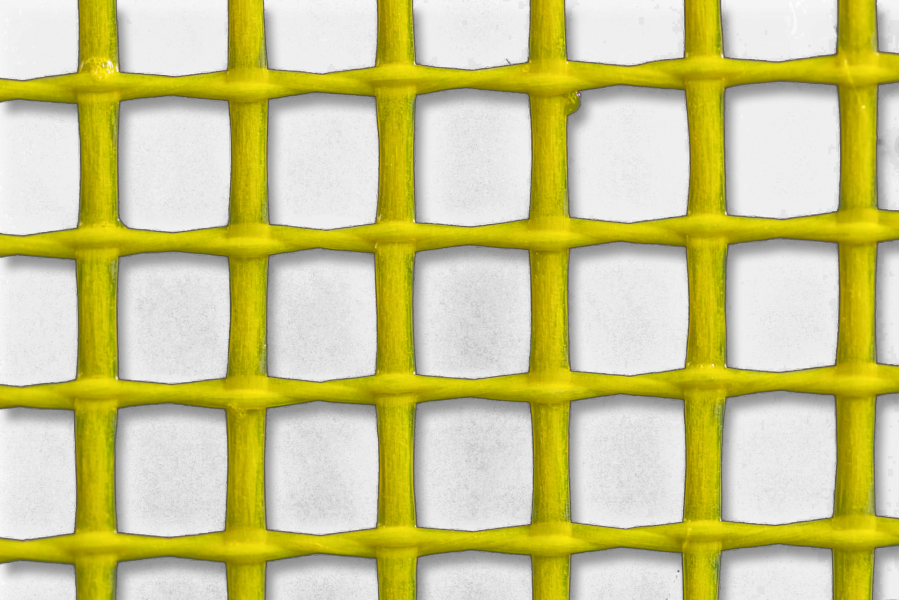

fibreglass mesh PREMIUM .

High-quality mesh with excellent strength parameters to be used as a component for ETICS. When used with thermal insulation systems delivered by renowned manufacturers, it guarantees an effective and reliable facade finish.

High grade flexible mesh for advanced thermal insulation systems.
It is characterised by high alkali resistance and mechanical strength.

INTENDED USE
The PREMIUM mesh is to be used as a reinforcing material in exterior insulation and finishing systems.

STORAGE
Store packed rolls vertically in dry, well-ventilated rooms, away from heating equipment. Storage temperature should range from 0°C to +35°C. If the product is exposed to the long-term impact of weather conditions, in particular humidity, it may lose its original performance.

PACKAGING

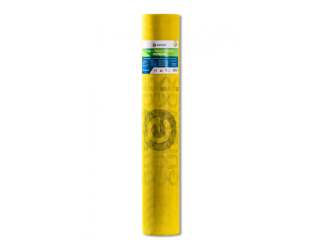

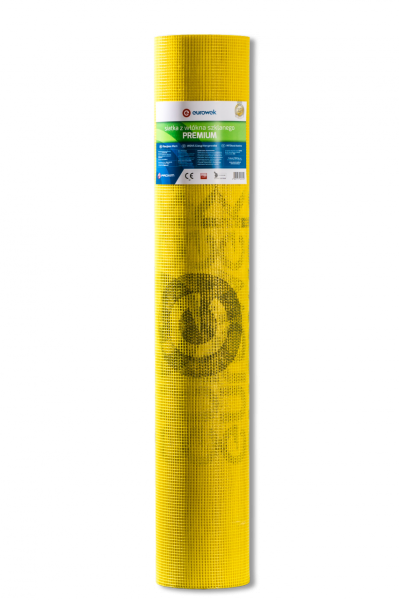

Every roll is packed using shrink wrap film and arranged vertically inside a cardboard box, on a wooden pallet.

Grammage: g/m2 150 ± 5% Mesh size: [mm] 4,5 ± 1,0 Roll width: [mm] 1000 ± 1 %
Product characteristics: PREMIUM
Organic content:
Organic content 20 ±4 [%]
Ash content 80 ±4 [%]
Mesh size:
Warp direction 4.5 ±1.0 [mm]
Weft direction 4.5 ±1.0 [mm]
Roll width: 1000 [mm] ±1%
Roll length: 30
Tensile and elongation strength:
As-supplied tensile strength Warp direction ≥ 39 [N/mm]
Weft direction ≥ 48 [N/mm]
As-supplied relative elongation Warp direction ≤ 4.5 [%]
Weft direction ≤ 4.5 [%]
Elongation strength after alkaline conditioning Warp direction ≥ 25 [N/mm]
Weft direction ≥ 35 [N/mm]
Grammage: 150 g/m2 ±5%
Standard number of rolls per pallet: 30
Chemical characteristics:
Fibre type: E-glass
Impregnation: SBR latex
Options available
  • Color adjustment: yes
  • Logo printed image: yes
  • Fabric softness: medium
  • Width: 1m
  • Length: 25m oraz 50m
